folded metal ceiling

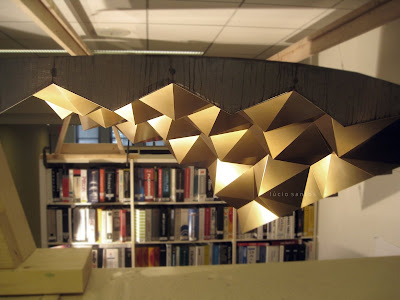

below are some photos of a 1:1 mockup of a faceted metal ceiling system. this 1.6m x 1.6m panel is fabricated entirely out of 1/16" thick stainless steel and weighs around 90 kilos. the module is comprised of 8 continuous folded strips, laser cut from flat sheets, welded together, with a metallic golden lacquer finish. the primary structural ribs are laser cut following the angles of the folded facets providing a seem for welding the strips together, with 16 sub-frames for lateral stability.
